Moonee Ponds Creek Viaduct Rail Bridge Upgrade
Rail surveying support for a critical bridge upgrade within a live Melbourne rail corridor.

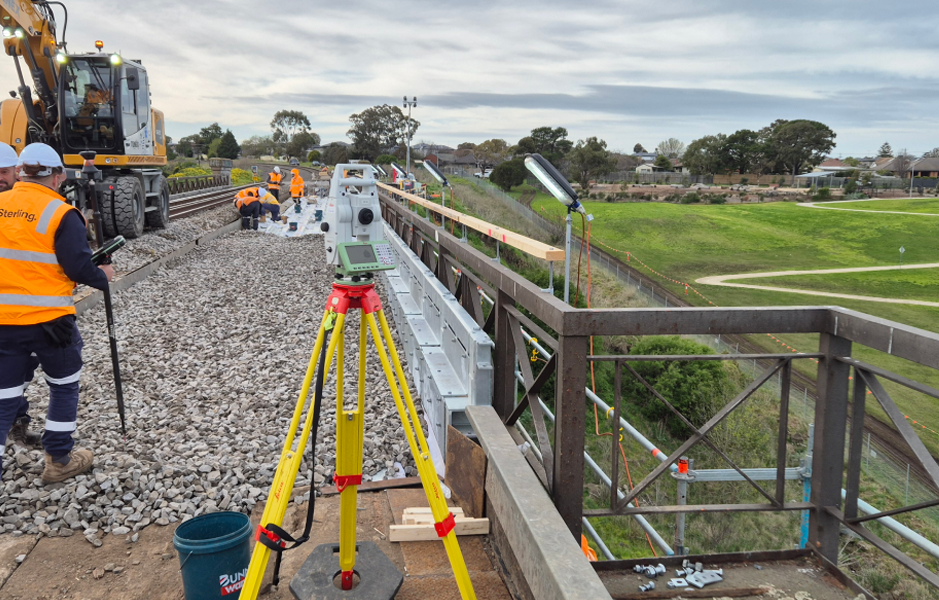

Rail Surveying for Critical Infrastructure
Base Surveys provided high-accuracy survey support for the Moonee Ponds Creek Viaduct Rail Bridge Upgrade, helping deliver bridge deck replacement, ballast profiling, rail alignment set-out, and final verification under tight rail possession windows. Working for Sterling Infrastructure on an Australian Rail Track Corporation asset, our team supported safe, precise delivery across day, night, and weekend works.
Location
Moonee Ponds, VIC
Client
Sterling Infrastructure
Builder
Rail infrastructure surveying
Completed
2025
Project Overview

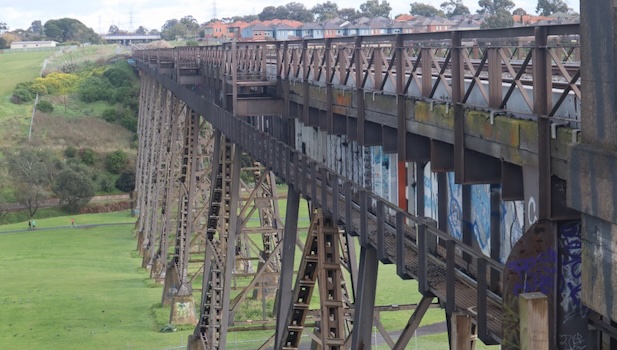

The Moonee Ponds Creek Viaduct Rail Bridge Upgrade formed part of a critical infrastructure program focused on improving the safety and reliability of a key freight and passenger rail corridor. Our team provided comprehensive construction surveying support throughout the project.
The works involved removal and replacement of sections of the bridge deck, followed by track and ballast reinstatement. With limited possession windows and strict rail safety controls, the project demanded precise survey support, fast coordination, and steady program alignment.
Scope of Work
Base Surveys was engaged by Sterling Infrastructure to provide construction survey support across the project’s critical construction stages.

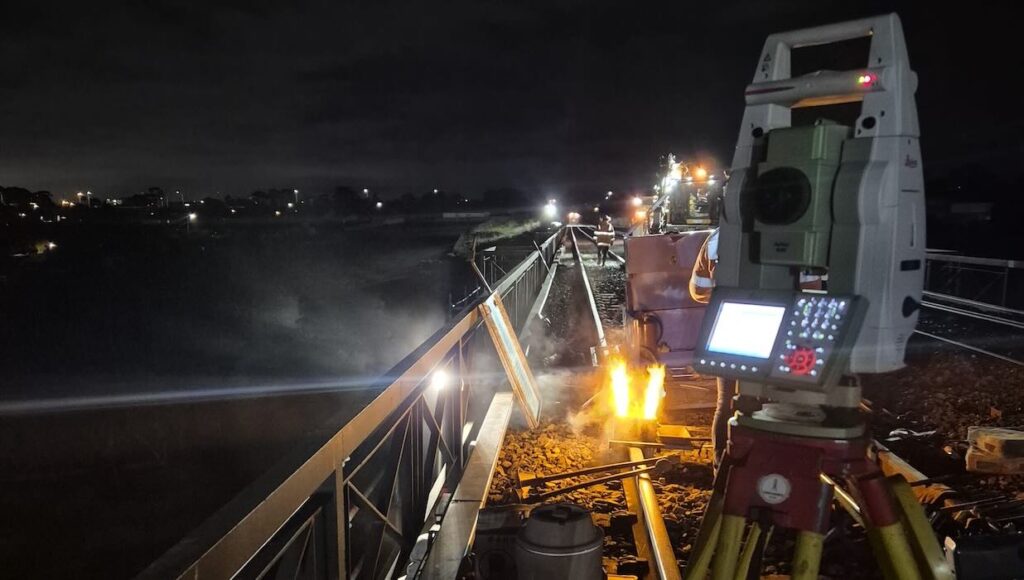

Bridge Deck and Platform Set-Out
- Set-out for removal of the existing bridge deck and platforms
- Set-out for installation of new structural platforms
Ballast and Rail Works
- Ballast set-out and profiling and level control to support track reinstatement

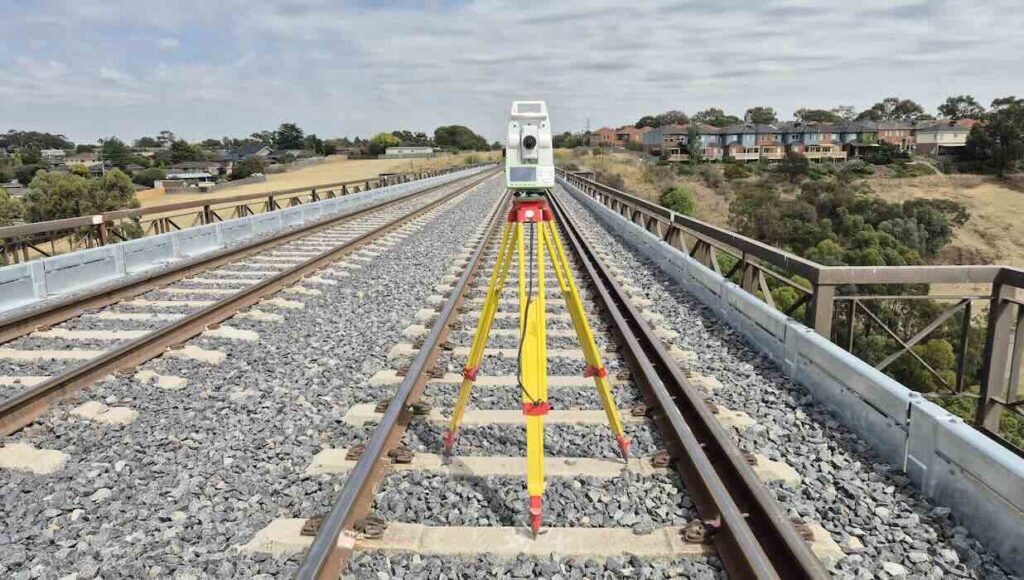

- Rail alignment set-out to meet required geometry and operational tolerances

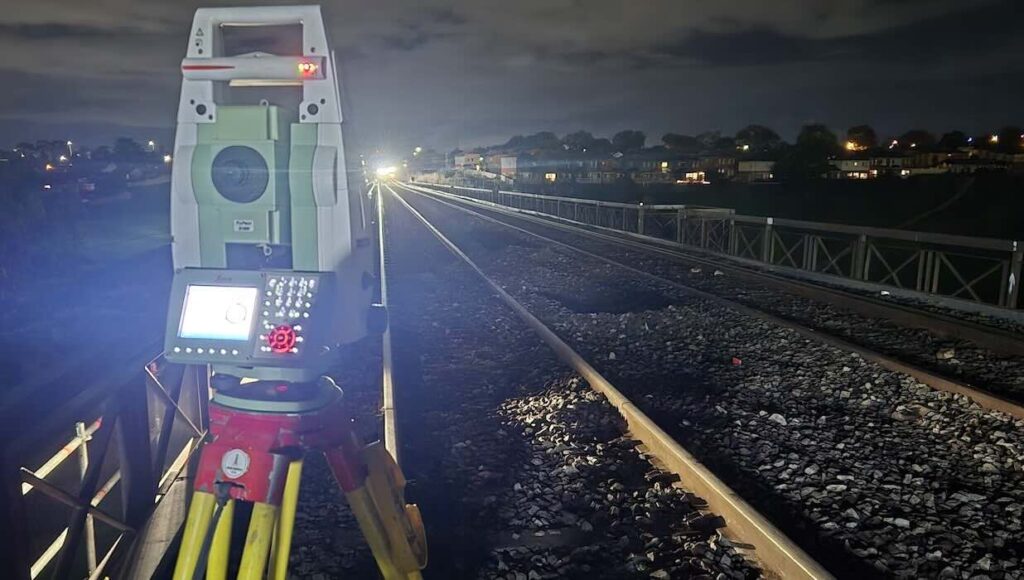

Verification and Final Checks
- As-built verification of final rail geometry and alignments
- Survey support aligned with sequencing of bridge, ballast, and track works
Key Contributions
Base Surveys delivered high-precision rail alignment set-out to support operational safety and ride performance. Accurate control at this stage helped keep the installed rail geometry aligned with project requirements.

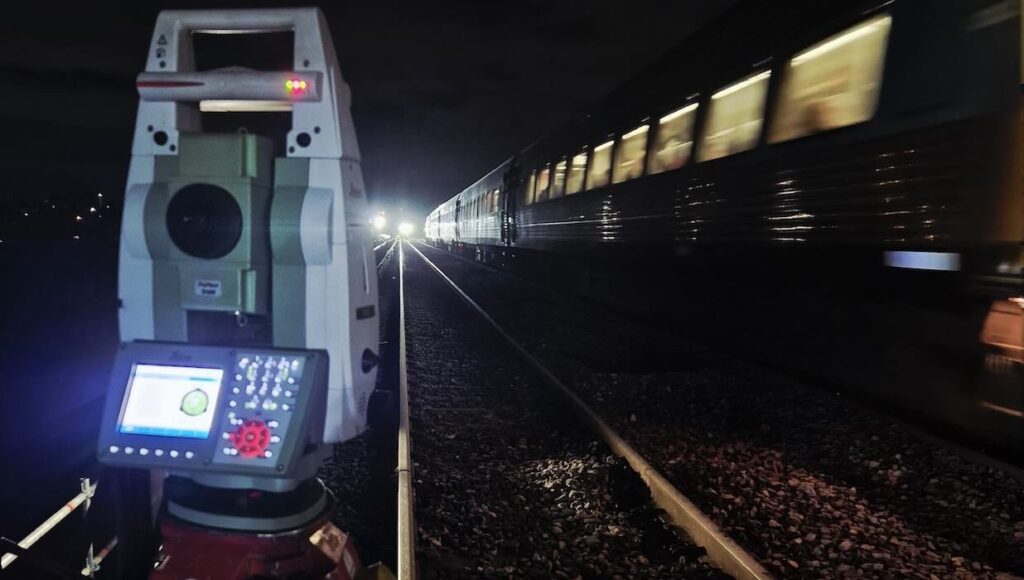

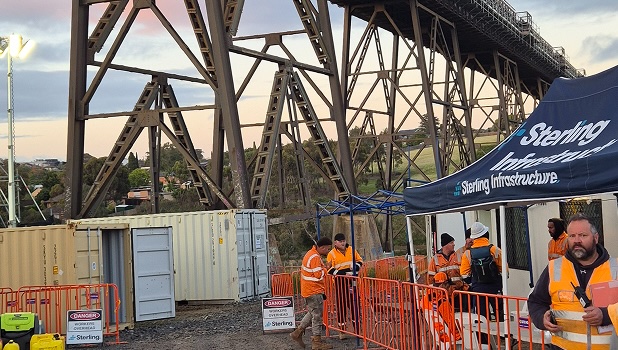

We operated within a live rail corridor under strict safety protocols and site controls. That required disciplined field delivery and close coordination with construction teams throughout the program.
Our team supported continuous construction windows, including night and weekend works tied to critical possession periods. This helped site teams move through each work stage without losing time during limited access windows.
Survey outputs were closely matched to the sequencing of deck replacement, ballast works, and track installation. This gave crews clear, reliable information as works progressed.
Project Outcome
Time-Critical Delivery
Base Surveys’ involvement supported efficient delivery of time-critical bridge refurbishment works within tight construction windows. Accurate set-out, profiling, and final verification helped reduce delivery risk across each stage of the upgrade.
Long-Term Asset Performance
Content: The completed works contributed to improved network reliability and long-term performance for an important Melbourne rail asset. For the client, this meant survey support that served both immediate construction needs and final infrastructure performance.
Why It Matters
Live Rail Capability
This project highlights Base Surveys’ capability in live rail environments where safety, timing, and accuracy all carry weight. It also shows our ability to support shutdown and possession-based programs with high-tolerance alignment and verification requirements.
Infrastructure-Focused Support
For contractors delivering rail upgrades and corridor works, projects like this need more than standard set-out. They need survey support that fits real site conditions, strict access windows, and critical infrastructure sequencing.
